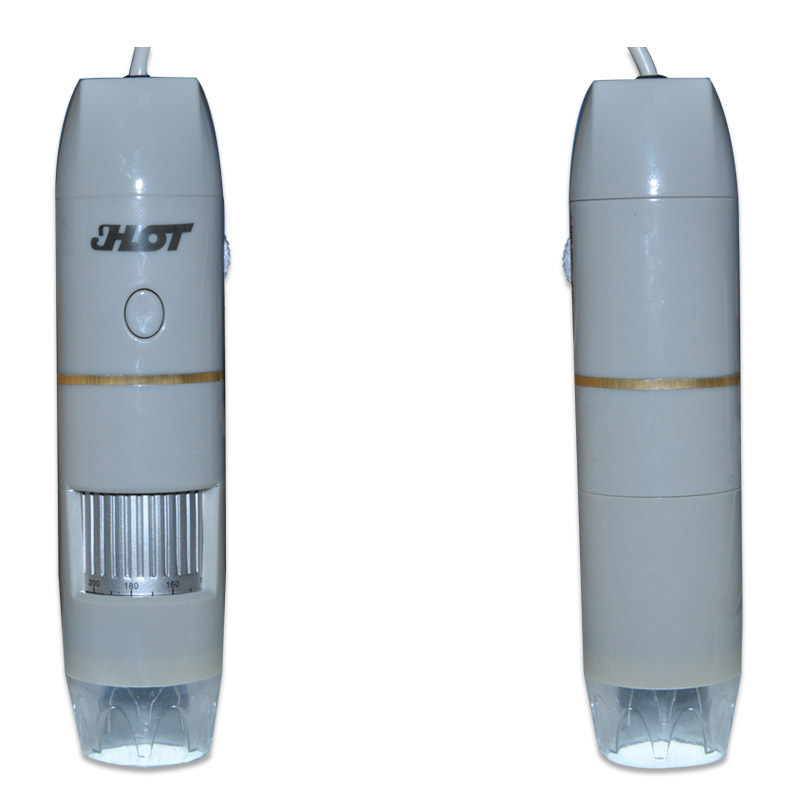

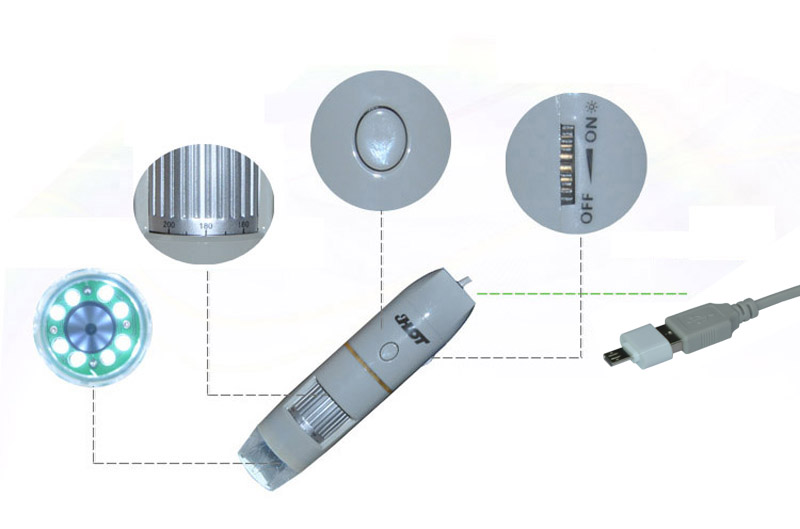

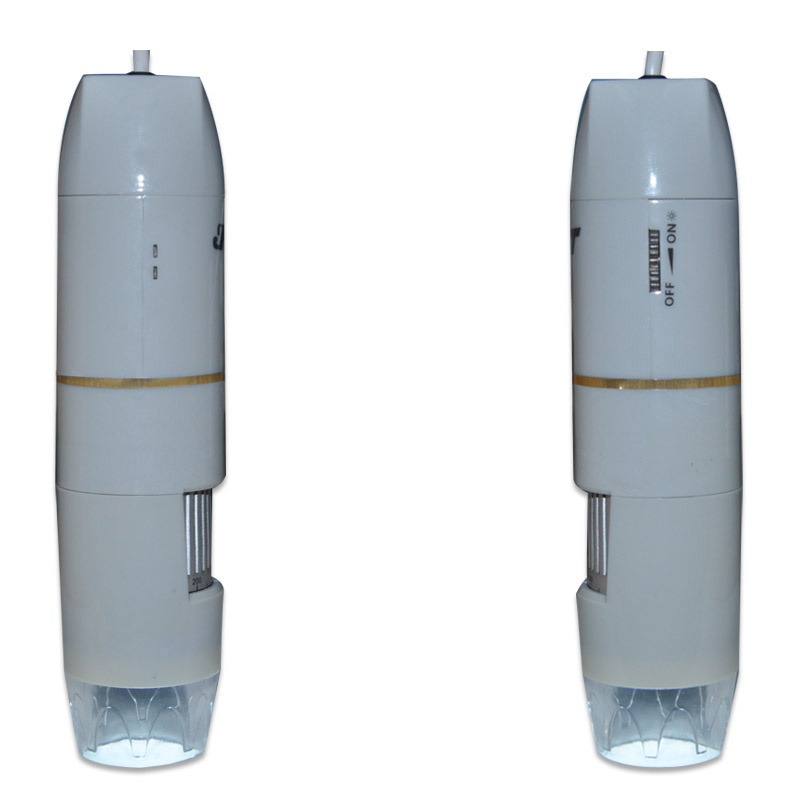

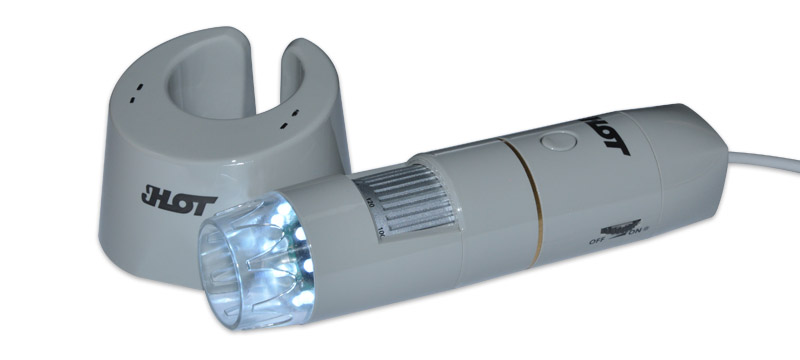

HT-60S Hardware 5MP 1-500X USB handheld digital microscope

5 megapixel hardware with special base, 1-500X continuous zoom,


Optical magnification 50x and 200x, digital magnification 500x in software,


Optional image resolution 640 x480, 1280 x960, 1600 x 2034 x1536, 2592 x1944,

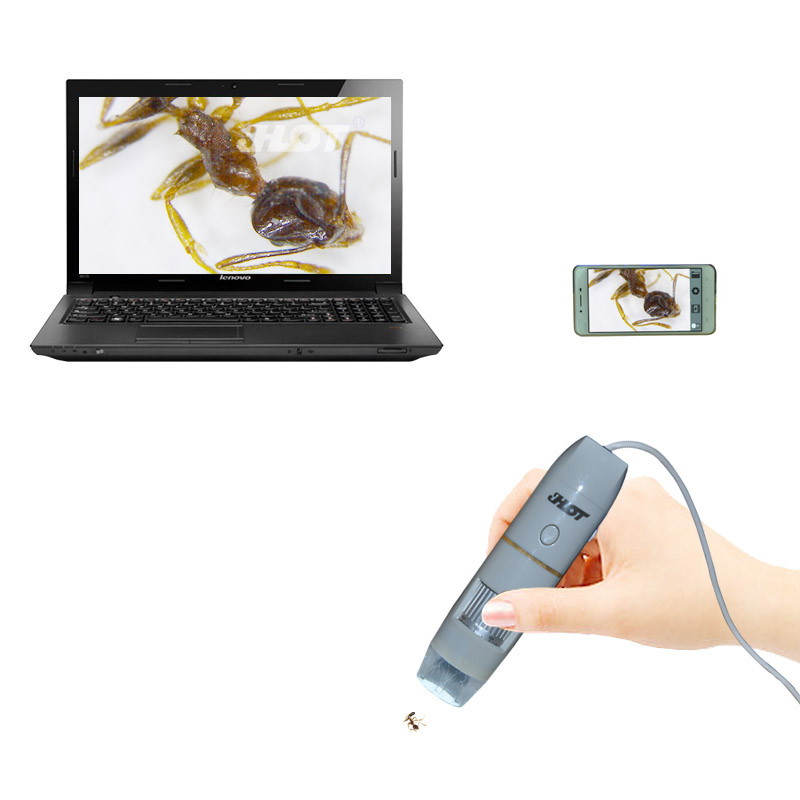

It can display full-screen real-time living biological images on the computer,

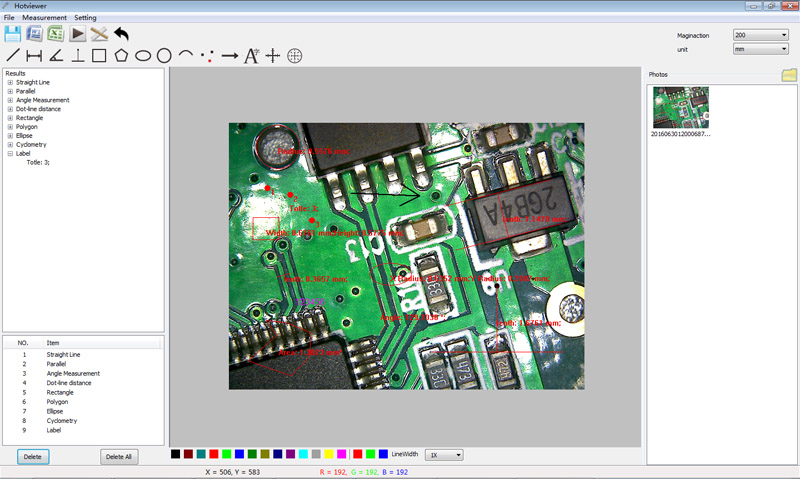

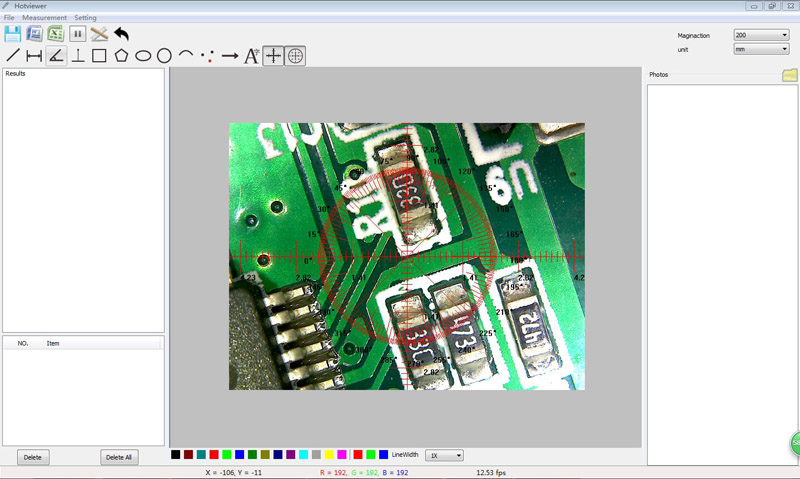

With advanced measurement function, you can measure the distance between circle, line, rectangle, polygon, arc, Angle, parallel line, ellipse, point and point, point and line.


According to the need to choose a variety of colors for annotation, can be in the software to take photos, video.


Digital microscopes are widely used in: industrial inspection, computer component inspection, telecommunications module inspection, scientific teaching tools,


Children explore microscopic experience, laboratory research, medical analysis, school research tools, insect anatomy, plant anatomy,

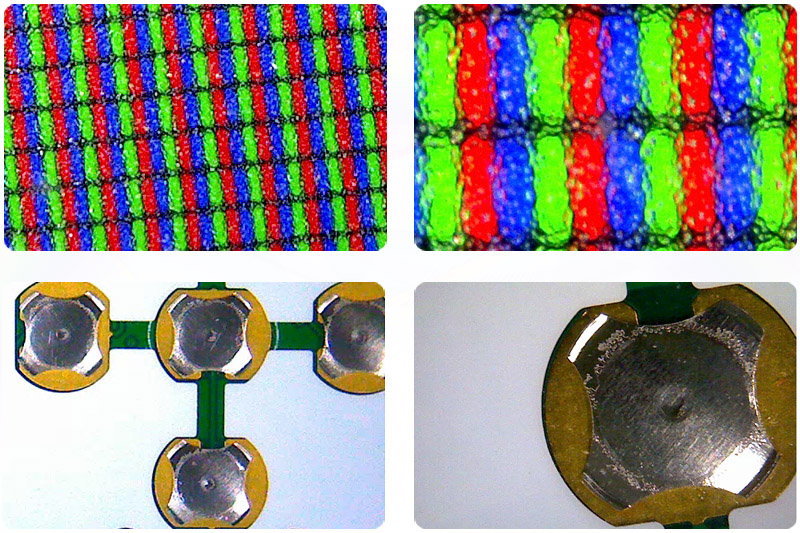

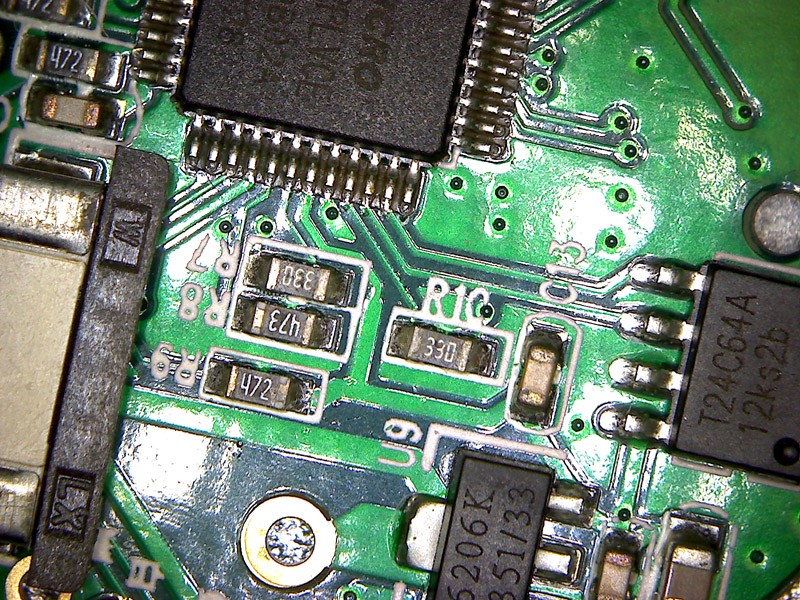

Skin inspection, hair inspection, textile inspection, jewelry inspection, collection inspection, antique inspection, ceramic inspection, printing inspection, PCB board inspection, etc.


No price
Collect
产品编号 22
Product description
Commodity Details

HT-60S OTG Software for Android Download link:

www.indmu.com/hot/88.rar


HT-60S Android version OTG software scan code download:

HT-B30S USB头皮检测.jpg


HT-60S Detailed PDF Instruction manual Download link:

www.indmu.com/hot/60.rar


Product parameters:

Model.: HT-60S   (Short-fouce lens USB+OTG function)

Controller : High Speed DSP(M-jpeg)/CMOS Sensor

Magnification Range : 1X ~ 500X

Take Images: SNAP Shot

Pixels: True 5.0MP

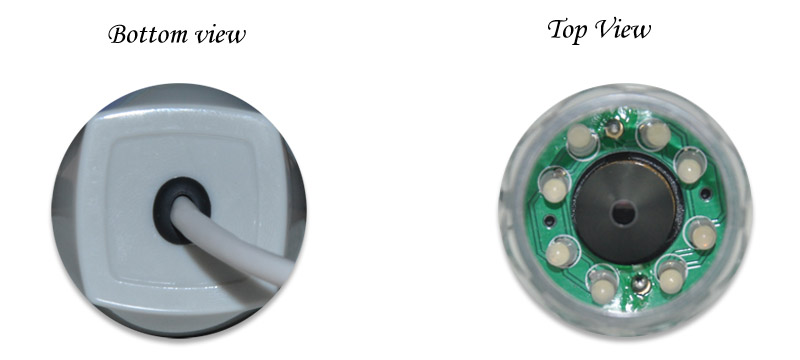

Light Source :Buile-in 8 White-light LED/0-30000LUX

Video Capture Resolution:640x480,1280x960,1600x1200,2034x1536,2592x1944

Focus Range :0~3 cm

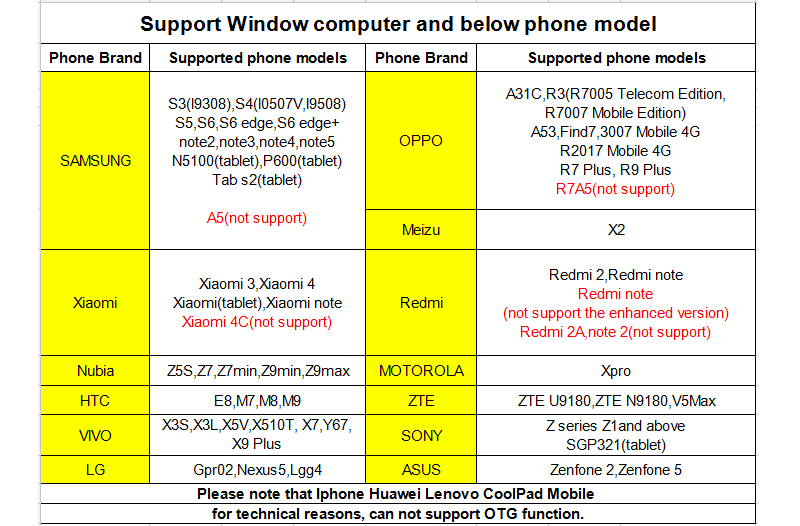

Support O/S :  WIN XP/VISTA;WIN 7, WIN 8, WIN 10(PC or Tablet),  (Android phone with OTG function)

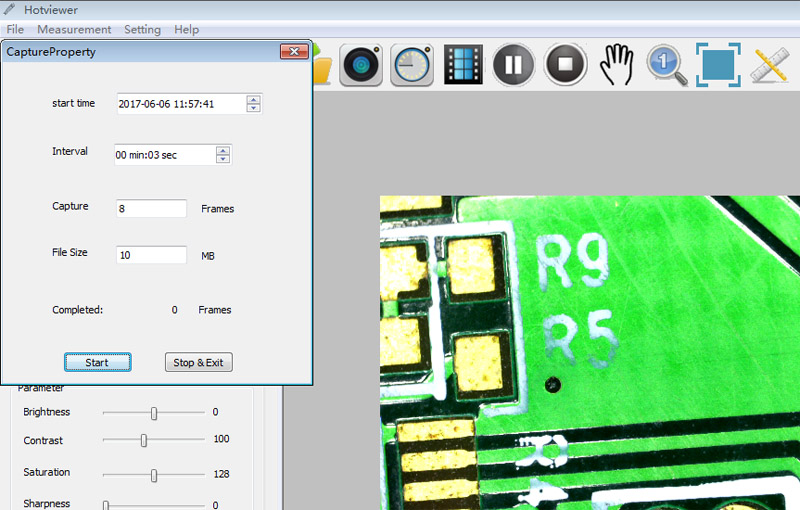

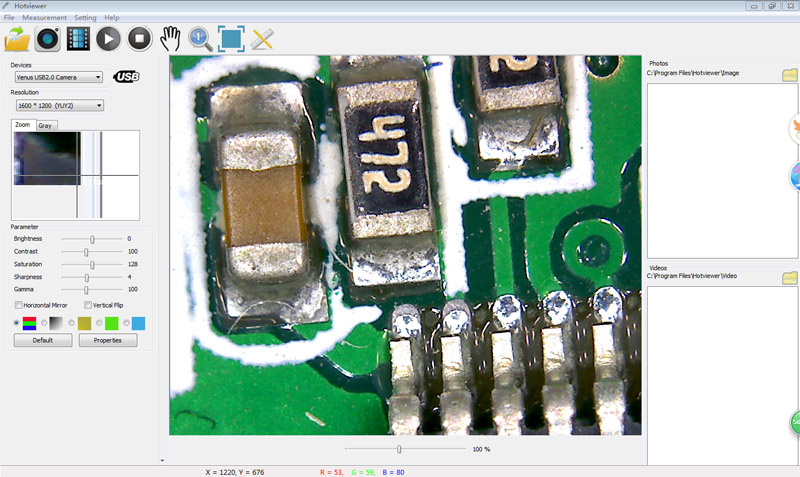

Applications: Hotviewer (pc), HotMicroscope (Android)

Connection :USB interface

Power supply : USB(5V DC)

Frame Rate:   20-30f/s Under 500 LUX Brightness

Language:Chinese/English (other languaegs can be OEM)

Coulor:Gray (other coulors can be OEM)

Product Dimension: 144 mm ( L) *37 mm (D )

GW:500g
