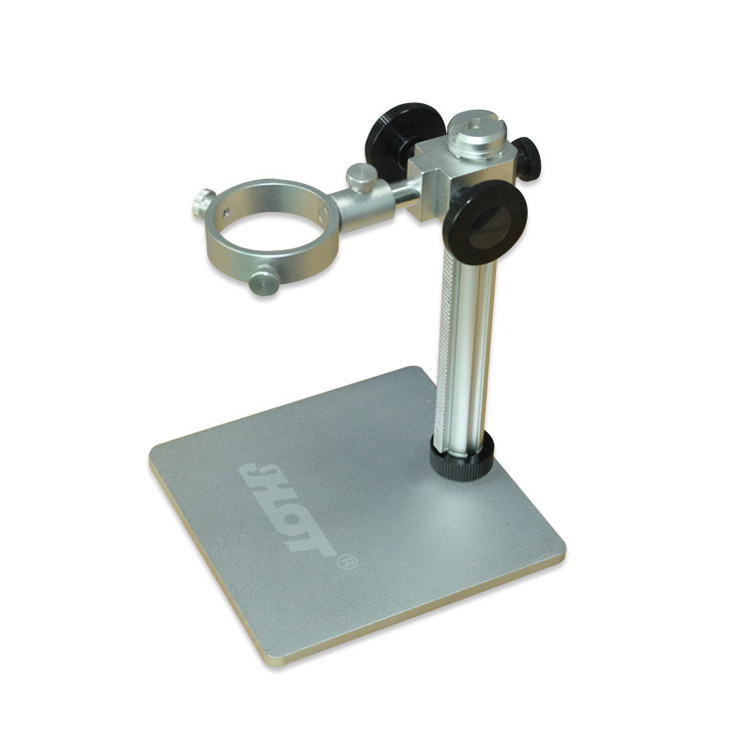

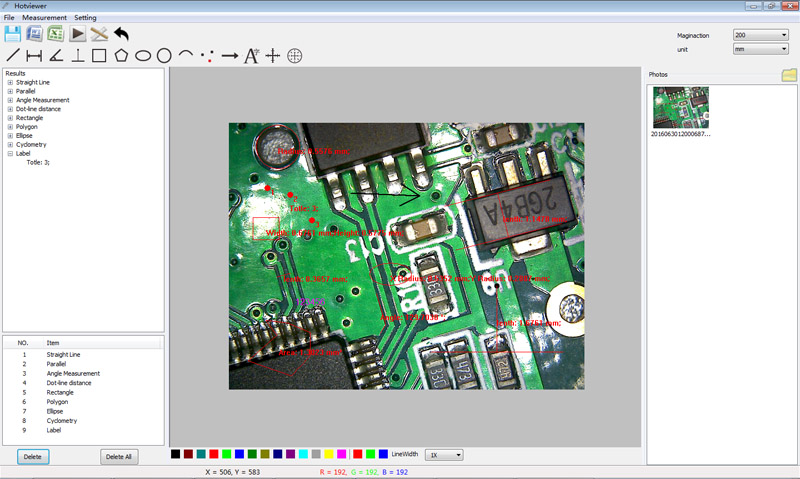

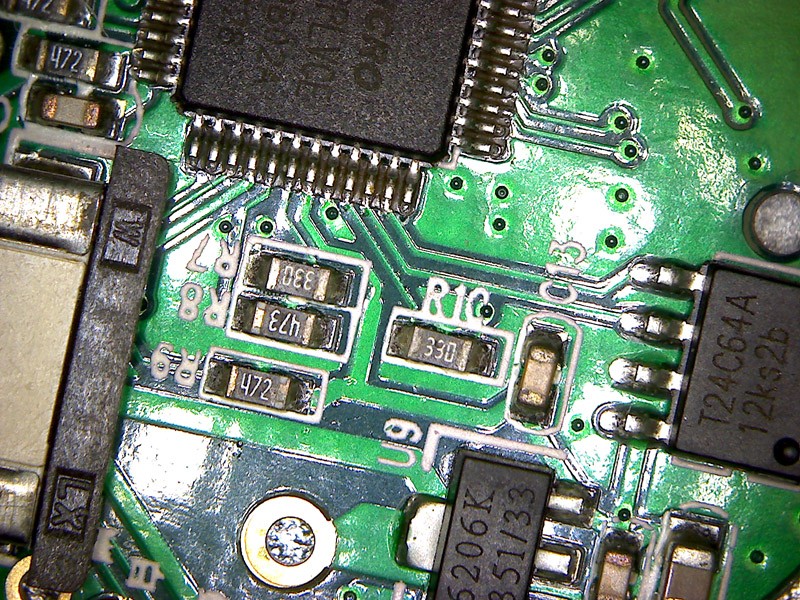

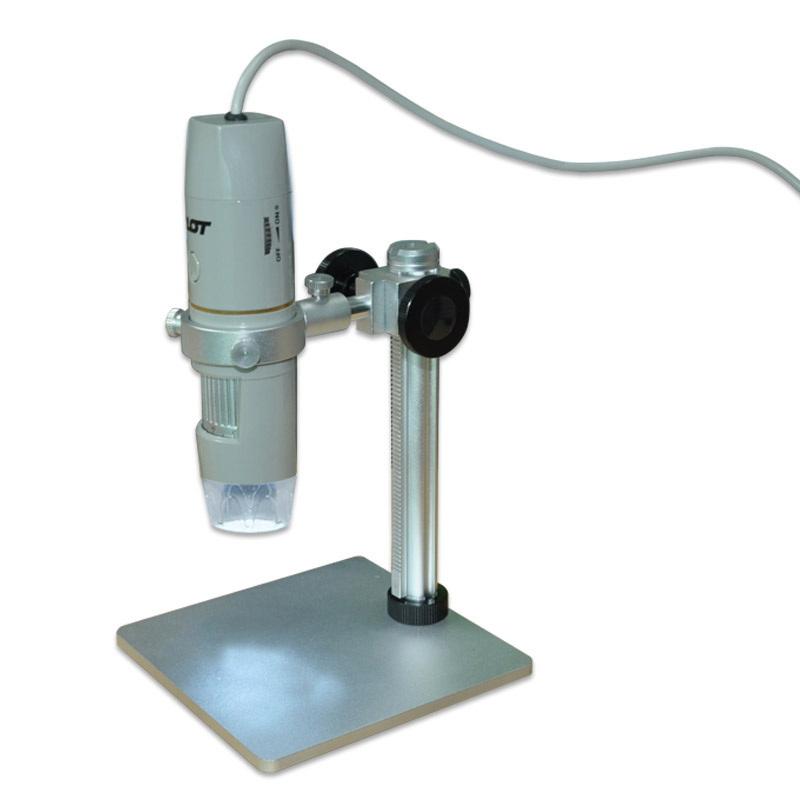

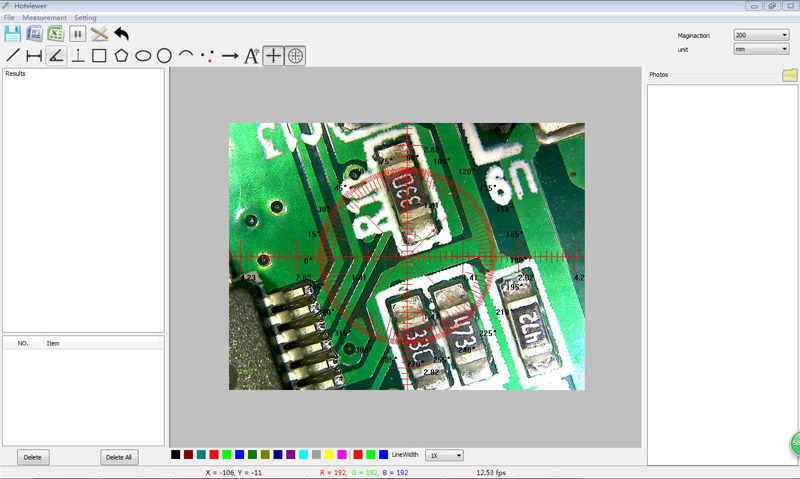

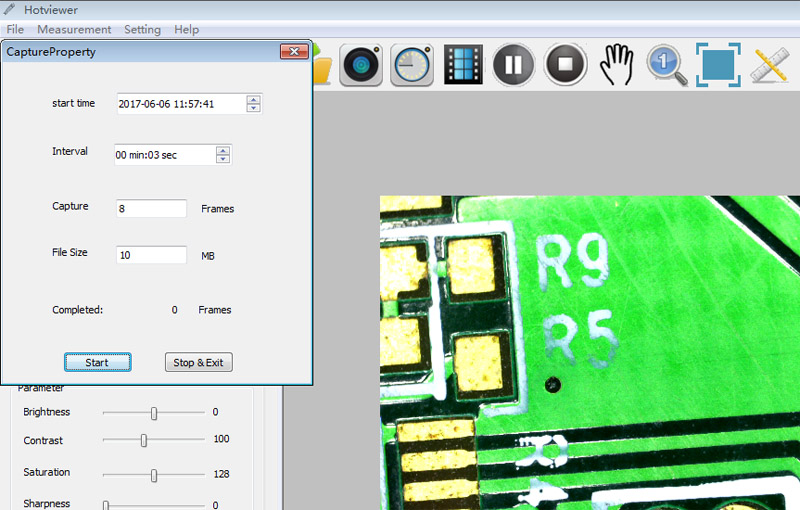

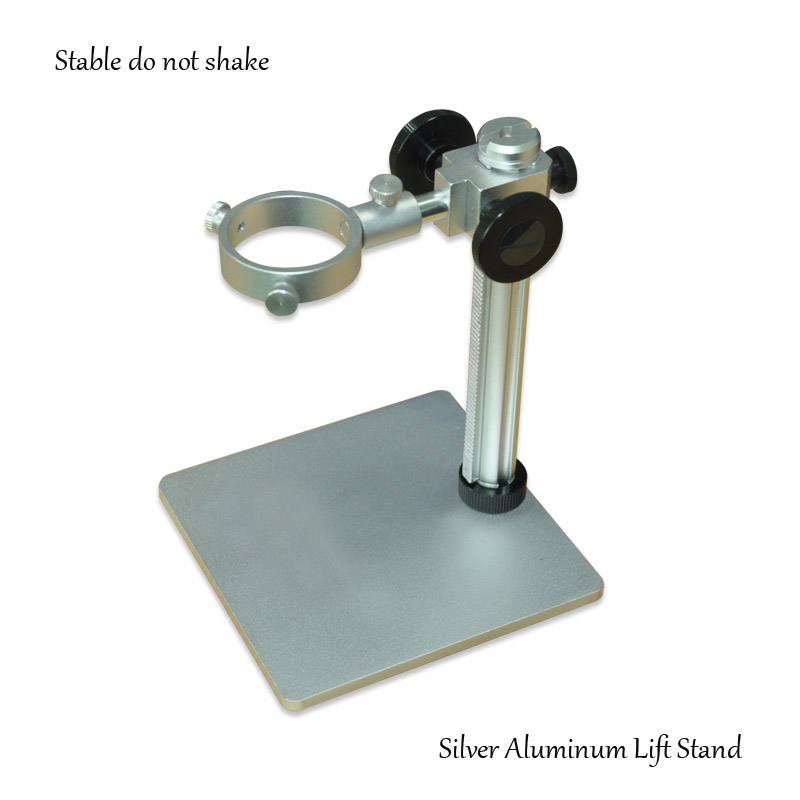

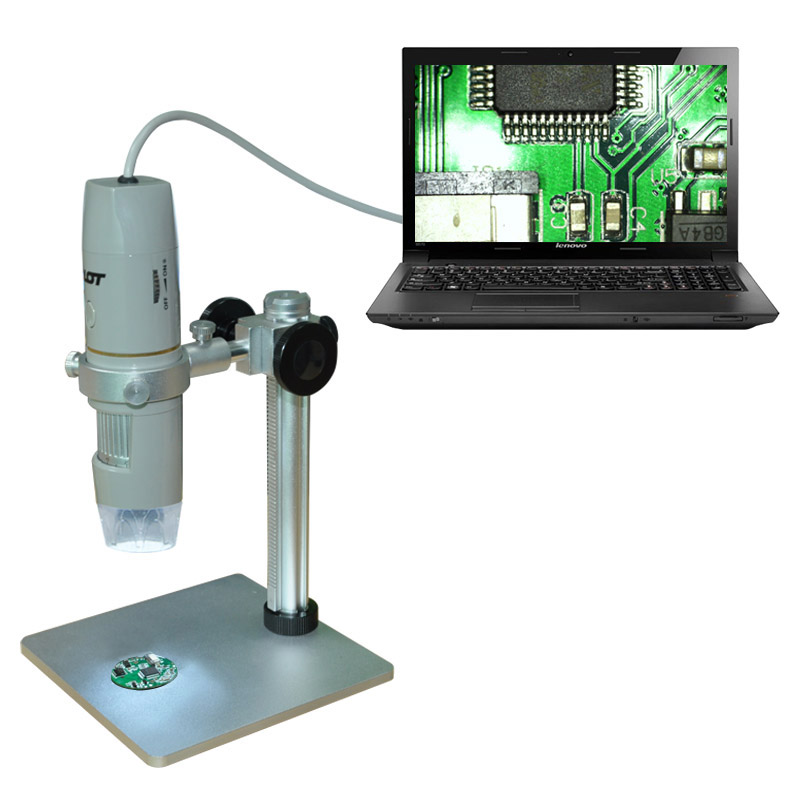

HT-60S Hardware 5MP 1-500X USB digital microscope5 megapixel hardware with metal stand, 1-500X continuous zoom, Optical magnification 50x and 200x, digital magnification 500x in software, Optional image resolution 640 x480, 1280 x960, 1600 x 2034 x1536, 2592 x1944, It can display full-screen real-time living biological images on the computer, With advanced measurement function, you can measure the distance between circle, line, rectangle, polygon, arc, Angle, parallel line, ellipse, point and point, point and line. According to the need to choose a variety of colors for annotation, can be in the software to take photos, video. Digital microscopes are widely used in: industrial inspection, computer component inspection, telecommunications module inspection, scientific teaching tools, Children explore microscopic experience, laboratory research, medical analysis, school research tools, insect anatomy, plant anatomy, Skin inspection, hair inspection, textile inspection, jewelry inspection, collection inspection, antique inspection, ceramic inspection, printing inspection, PCB board inspection, etc.
Collect
产品编号 7
Product description
Commodity Details

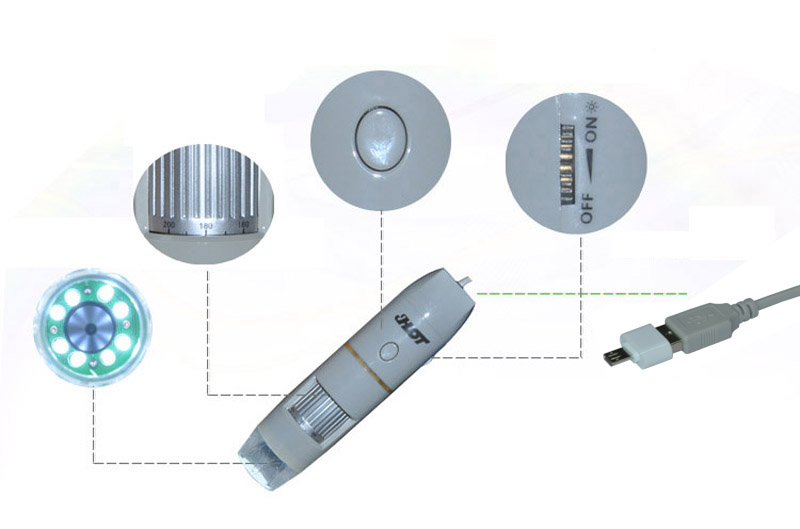

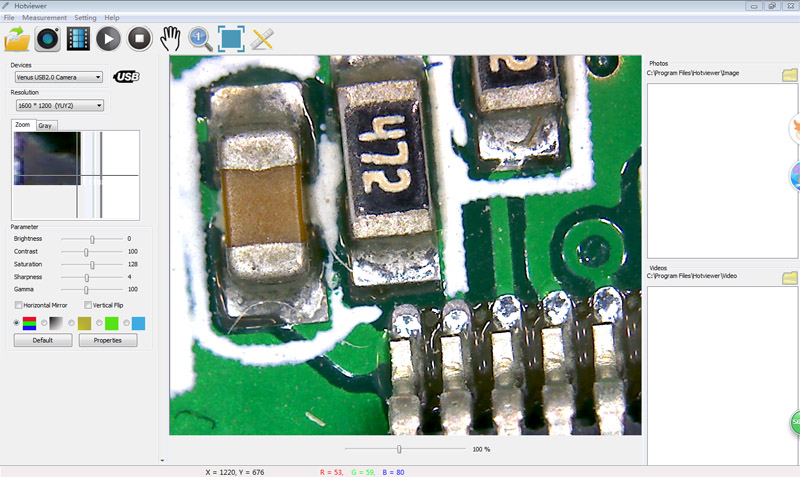

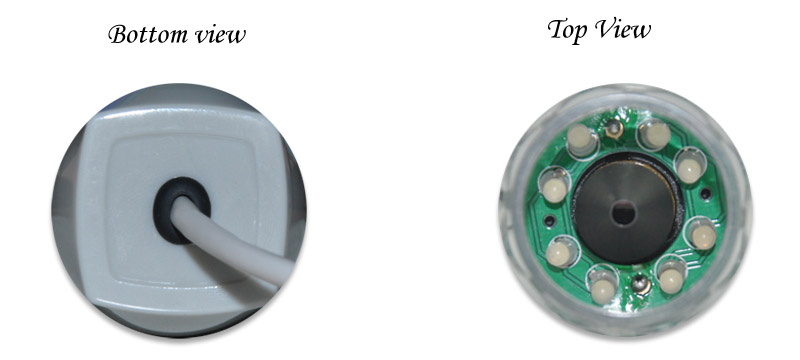

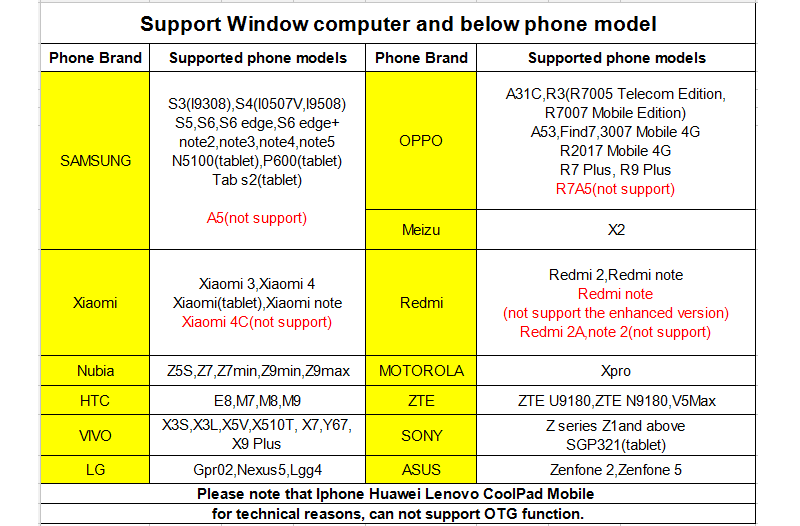

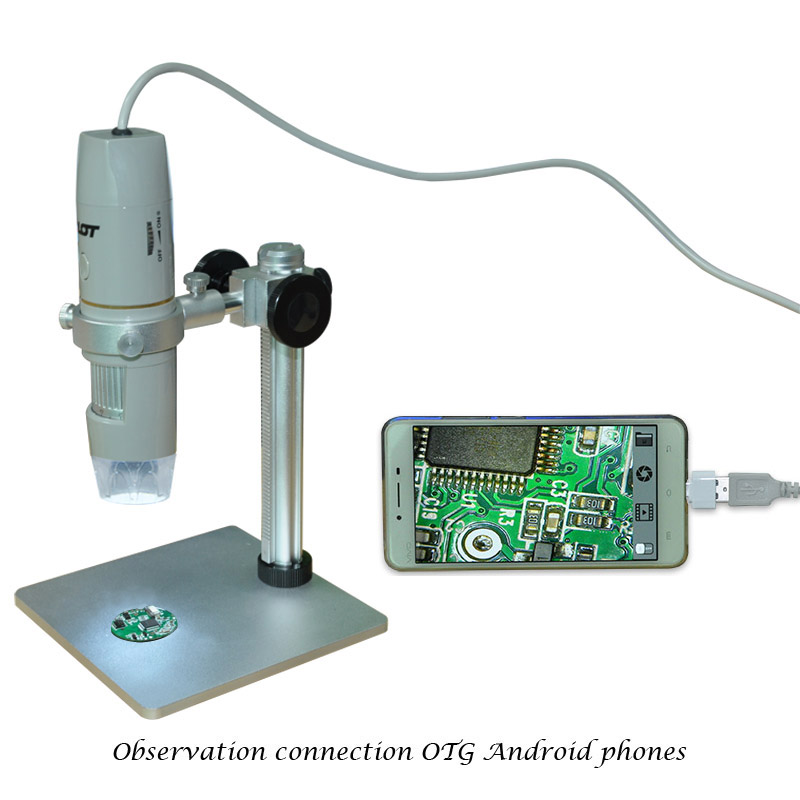

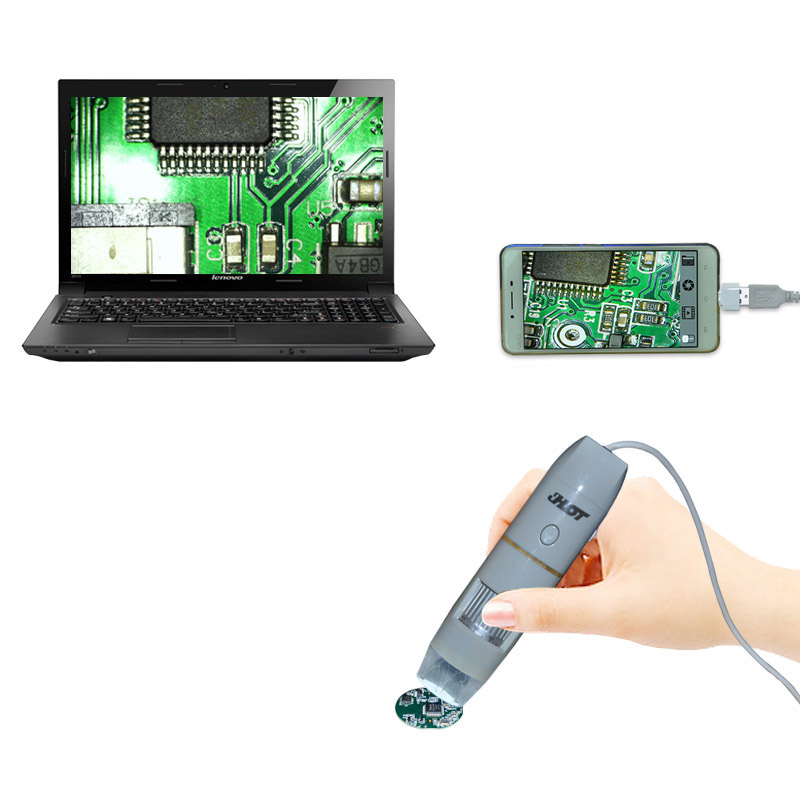

HT-60S OTG Software for Android Download link: HT-60S OTG software for Android HT-60S Detailed PDF Instruction manual Download link: Product parameters: Model.: HT-60S (Short-fouce lens USB+OTG function) Controller : High Speed DSP(M-jpeg)/CMOS Sensor Magnification Range : 1X ~ 500X Take Images: SNAP Shot Pixels: True 5.0MP Light Source :Buile-in 8 White-light LED/0-30000LUX Video Capture Resolution:640x480,1280x960,1600x1200,2034x1536,2592x1944 Focus Range :0~3 cm Support O/S : WIN XP/VISTA;WIN 7, WIN 8, WIN 10(PC or Tablet), (Android phone with OTG function) Applications: Hotviewer (pc), HotMicroscope (Android) Connection :USB interface Power supply : USB(5V DC) Frame Rate: 20-30f/s Under 500 LUX Brightness Language:Chinese/English (other languaegs can be OEM) Coulor:Gray (other coulors can be OEM) Product Dimension: 144 mm ( L) *37 mm (D ) GW:660g |
